Fluorograph FTsOI-12

Short description

The device is intended for carrying out radiological surveys of internals, a thorax of the patient in a standing position, sitting in direct and side projections by using the digital receiver of the x-ray in the purpose of early-stage identification of tuberculosis or oncological diseases.

The device is an economically effective medical equipment with low operational expenses with igh diagnostic potential at low dose loading and high spatial resolution of images (2,5 or 4,5 couples of lines/mm – at the request of the customer).


  • Provides a permanent control of position of the patient with medical personnel during inspection;
  • Absence the risk of traumatism;
  • Convenient for patients with non-standard build and physical deviations, patients on wheelchairs.
  • Lack of the reflected radiation of the patient and the digital receiver that attracts improvement of quality of the received x-ray image.
  • Reliability of the equipment due to the lack of additional mechanisms of the drive of doors and a footboard for raising of the patient.
  • The best option as an equipment of radiodiagnosis for clinics and hospitals.
  • Compact as it doesn't need big areas for placement.

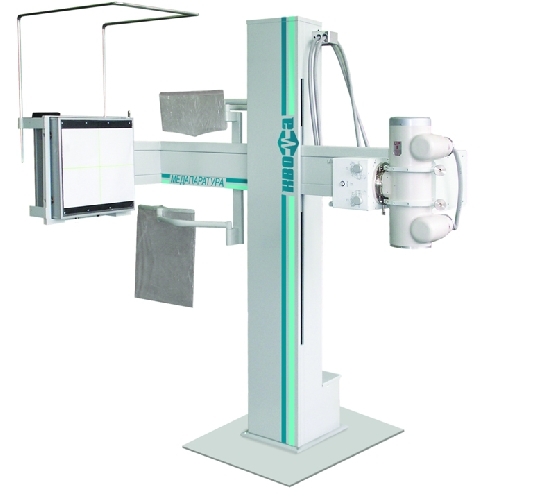

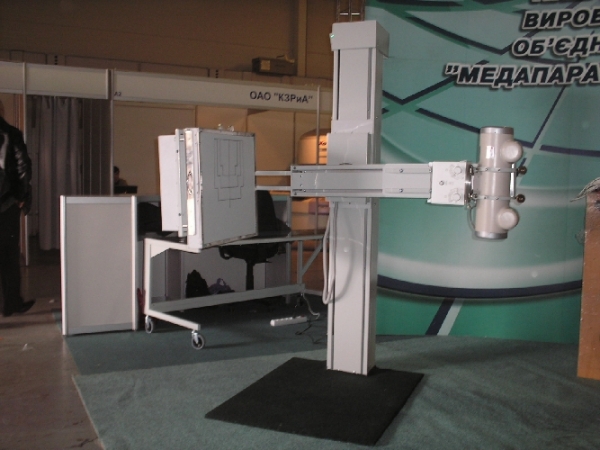

The device is structurally executed with the radiator which is connected with an axis and the receiver of the x-ray image, with distance focus of a tube – the center of the receiver of 100 cm or 150 cm (meeting the demand of the customer). The device allows the radiologist to choose situation for research of the patient in a standing position or sitting. Vertical movement of a radiator and receiver, from 400 to 1900 mm is also possible.

The device is equipped with a x-ray radiator with two focal spots (0,6 and 1,5) and the high-frequency generator.

The composition of the X-ray system for chest - Fluorograph FDIP-12 (11) produced by «KUFP «Medaparatura»:

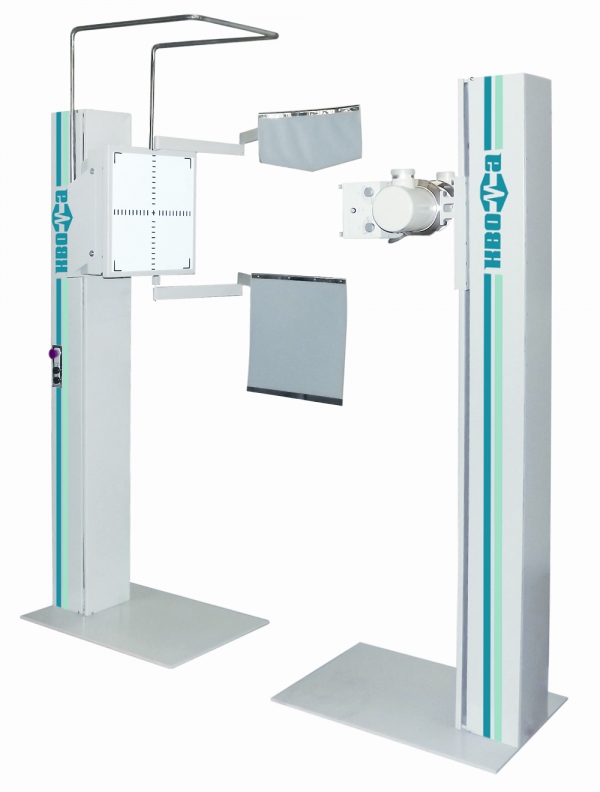

  • Stand for fixing the digital X-ray image detector and tube;
  • We set the digital detector ИОНА-Р-4000, manufactured by SPA «Teleoptik», or OMEGA with a resolving power 4,8 Lp/ma, 3,6 Lp/ma и 2,5 Lp/mm). Digital x-ray image detectors are equipped with the original software. There is an ability to operate the software in a unified (uniform) system with a hospital-wide server.
  • X-ray tube. We recommend using X-ray tubes with a minimum size of the focal spot with low-dose digital x-ray image detectors. (For example the focal spot of 0.6/1.5 or 0.6/1.2. We recommend using Italian tubes - X42 / C40, produced by company IAE (with a focal spot of 0.6 / 1.5) in fluorograph (X-ray system for chest) FDIP-08 (07) and FDIP-12 (11). This tube has an optimal ratio of "price-quality".)  As an optional: Toshiba E7239X (1,0/2,0) tubes.
  • Collimator DM-LB50;
  • High-frequency power supply produced by CPI (Canada) - CMP150 or CMP200, 32 kW, 380V/ 3 phases. Optional: CPI generators - CMP200 ENERGY ASSIST 32 kW, 220V/ 1 phase, with the capacitor energy storage.

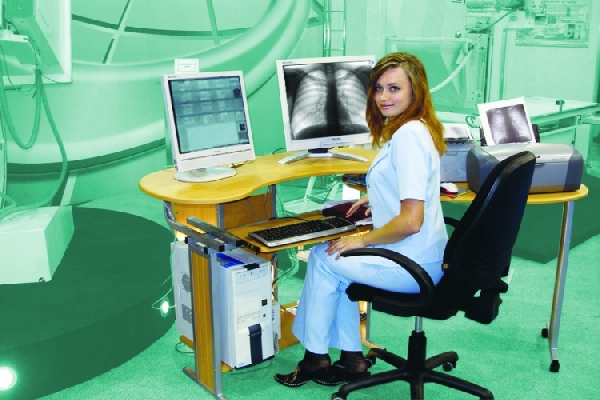

  • Radiologist's workplace;
  • Laboratory assistant's workplace;
  • X-ray protection devices for the thyroid gland and gonads defense;
  • Software to perform X-ray image processing functions, archiving and transmission according to the protocol DICOM-3.14, as well as the production of text documentation accompanying and statistical processing;
  • As an option we can supply monochrome diagnostic monitor WIDE and medical printer for hard copies of fluorograms on a special x-ray film.

An advantage of X-ray system - Fluorograph (X-ray system for chest) FDIP-12 (11) by «KUFP «Medaparatura»:

  • Digital Matrix system allows obtaining high quality image in a few thousandths of a second. With the help of it the image corresponds to the full-size plain film according to the diagnostic descriptiveness.?
  •  Digital X-ray image of high quality in many cases allows to diagnose without additional testing.
  • ?Moreover, the software that comes as a part of computer workstation enables a radiologist many options: control the brightness and contrast of the image, measuring distances, angles, and areas, i.e. helps the doctor to identify pathological aberrations.
  • The program also allows you to manipulate the «rigidity» of already taken fluorograms, highlighting the structure of the lungs or bone.?
  • Usability of the patient's research caused of the stand construction without cabin. Patient and staff safety provides by stationery protection.
